Mark MSS
Base-mounted fixed-speed screw compressors for steady 7-10 bar industrial air.
A straightforward fixed-speed screw platform.
A practical fixed-speed screw range from 4 to 75 kW for steady 7–10 bar industrial air.
It suits factories with stable air demand and a preference for straightforward compressor-room maintenance.

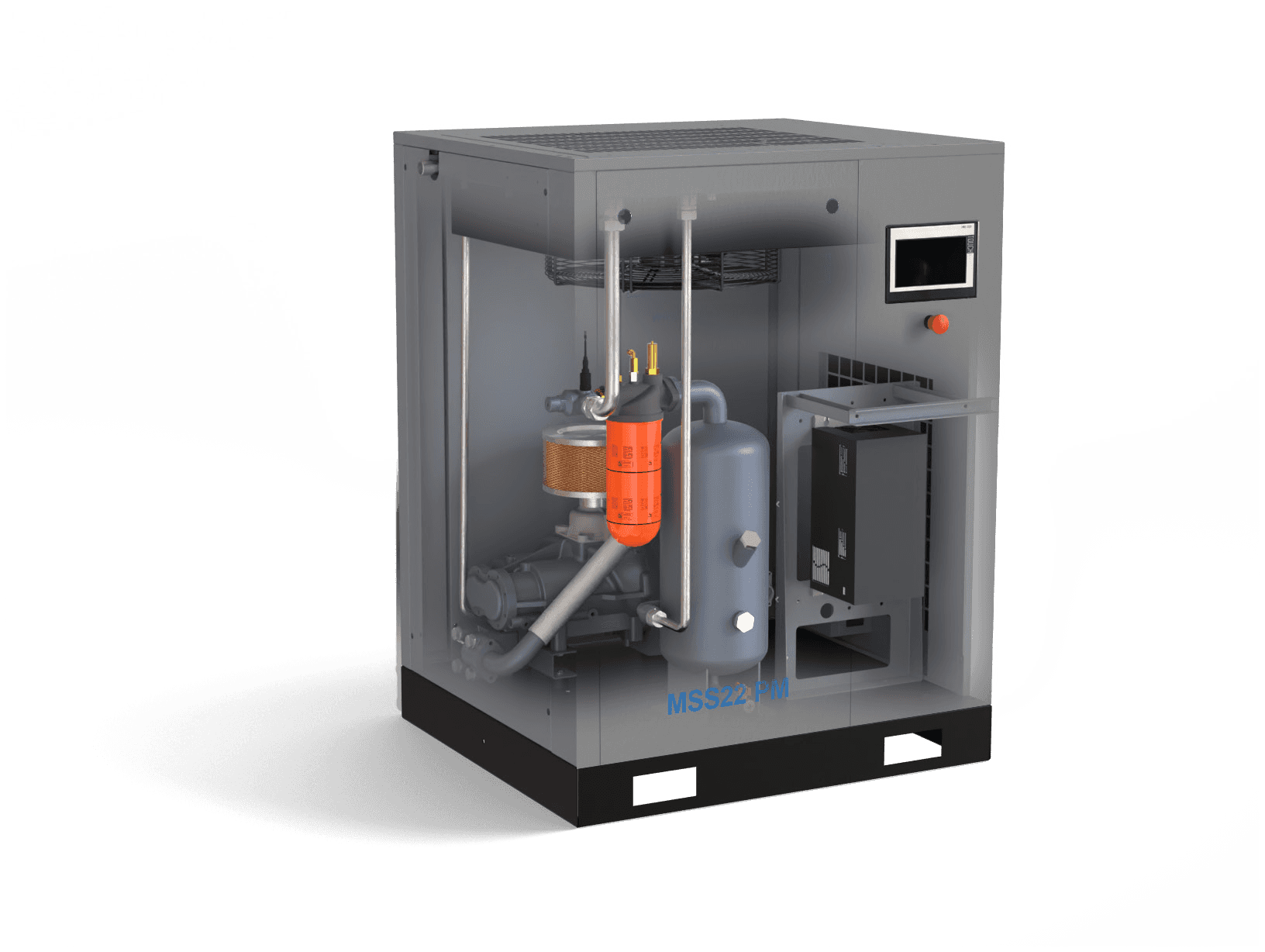

- Asymmetric screw airend for efficient, low-pulsation air.
- Base-mounted layout with a simple controller and accessible service points.
- Specification table verified from source material.
Mark MSS specification table.
FAD quoted at 0.8 MPa / 8 bar. Units also run at 7 and 10 bar. Source: Mark leaflet, ISO 1217.
| Model | Motor kW (HP) | FAD @ 8 bar (CFM) | FAD (m3/min) | Noise (dB(A)) | Weight (kg) | Outlet |
|---|---|---|---|---|---|---|
| MSS 4 | 4 (5.5) | 18 | 0.51 | 66 | 130 | 1/2" |
| MSS 5.5 | 5.5 (7.5) | 28 | 0.80 | 66 | 160 | 1/2" |
| MSS 7.5 | 7.5 (10) | 37 | 1.05 | 66 | 167 | 1/2" |
| MSS 11 | 11 (15) | 58 | 1.6 | 72 | 230 | 3/4" |
| MSS 15 | 15 (20) | 70 | 2.0 | 73 | 230 | 3/4" |
| MSS 18.5 | 18.5 (25) | 103 | 2.9 | 72 | 330 | 1" |
| MSS 22 | 22 (30) | 117 | 3.3 | 72 | 345 | 1" |
| MSS 30 | 30 (40) | 166 | 4.7 | 79 | 564 | 1 1/2" |
| MSS 37 | 37 (50) | 201 | 5.7 | 79 | 584 | 1 1/2" |
| MSS 45 | 45 (60) | 218 | 6.2 | 75 | 650 | 1 1/2" |
| MSS 55 | 55 (75) | 286 | 8.1 | 78 | 875 | 2" |
| MSS 75 | 75 (100) | 374 | 10.6 | 79 | 1107 | 2" |
Compare the neighbouring options.
Mark MSS PM
PM/VSD screw compressor option for plants with variable air demand.
Mark TMDD
Tank-mounted Mark package for compact compressor rooms and workshop air.
Atlas HS MS
Atlas HS fixed-speed screw air for value-focused factory installations.
A compressor needs clean, dry air downstream.
Treat condensate, oil carryover and particulates before they reach tools, valves or the final product.
- Dryers for +5 C or -40 C dew point targets.
- Filters for particulate, oil aerosol and vapour polishing.
- Receivers, auto drains and separators to stabilise the whole room.
Share your air demand and application.
The fastest shortlist comes from flow, pressure and duty cycle. WhatsApp is available if that is easier for your team.
