Fixed-Speed
Simple, proven compressors for stable demand and production lines with predictable air consumption.
Available: Mark MSS · Atlas HS MS
Continuous-duty air

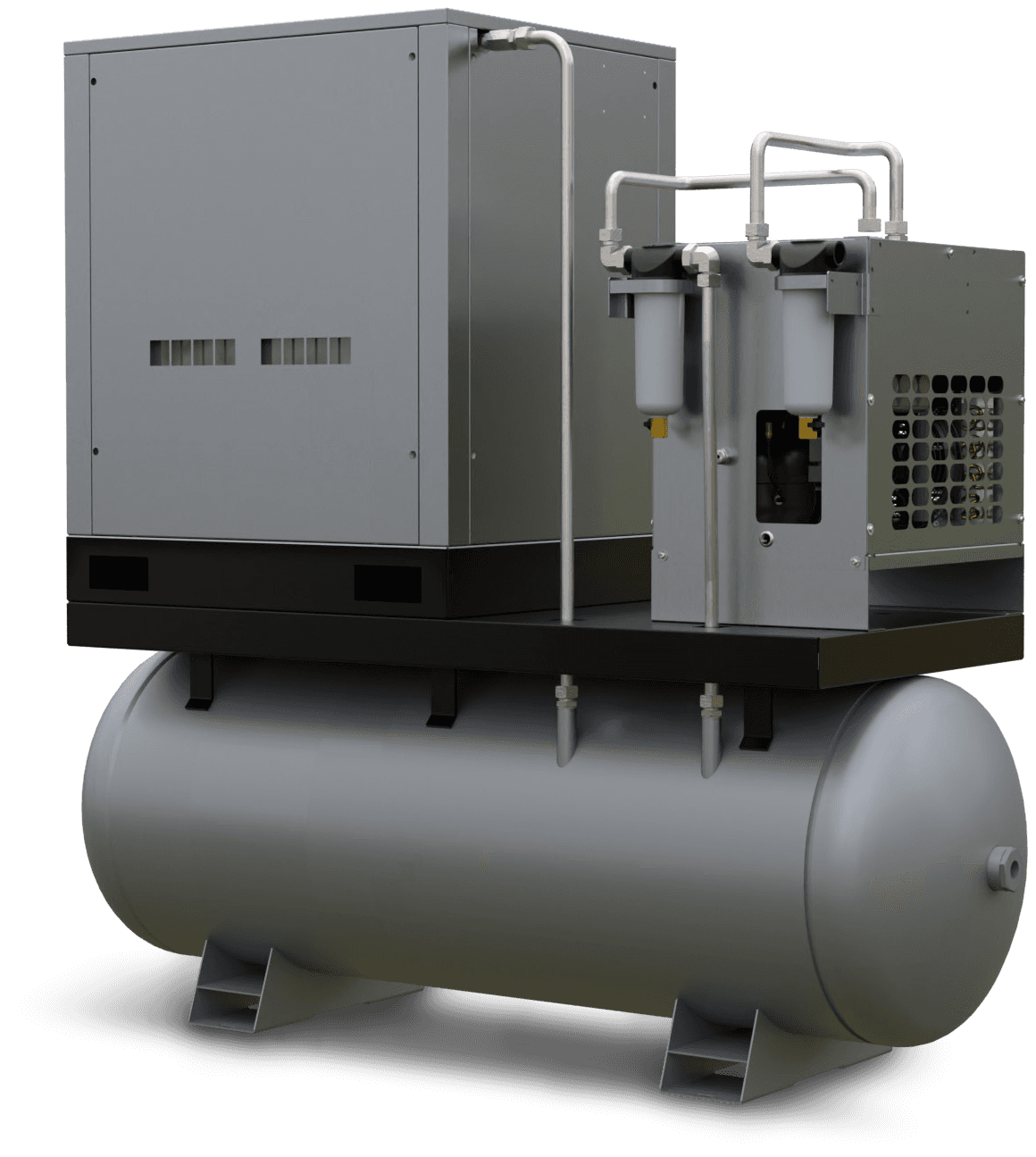

Rotary screw compressors for continuous industrial air.
Compare fixed-speed, PM VSD, two-stage and low-pressure screw units across Mark by Atlas Copco and Atlas HS.
7-10 barstandard working pressure
4-75 kWMark MSS range
35%typical VSD energy saving
Choose configuration
Match the drive and package to how your plant runs.
Base-mounted screw compressors for factories that need steady air, lower noise and practical service access.
Variable-Speed (VSD)
Matches motor speed to air demand to reduce unload time and energy waste in variable plants.

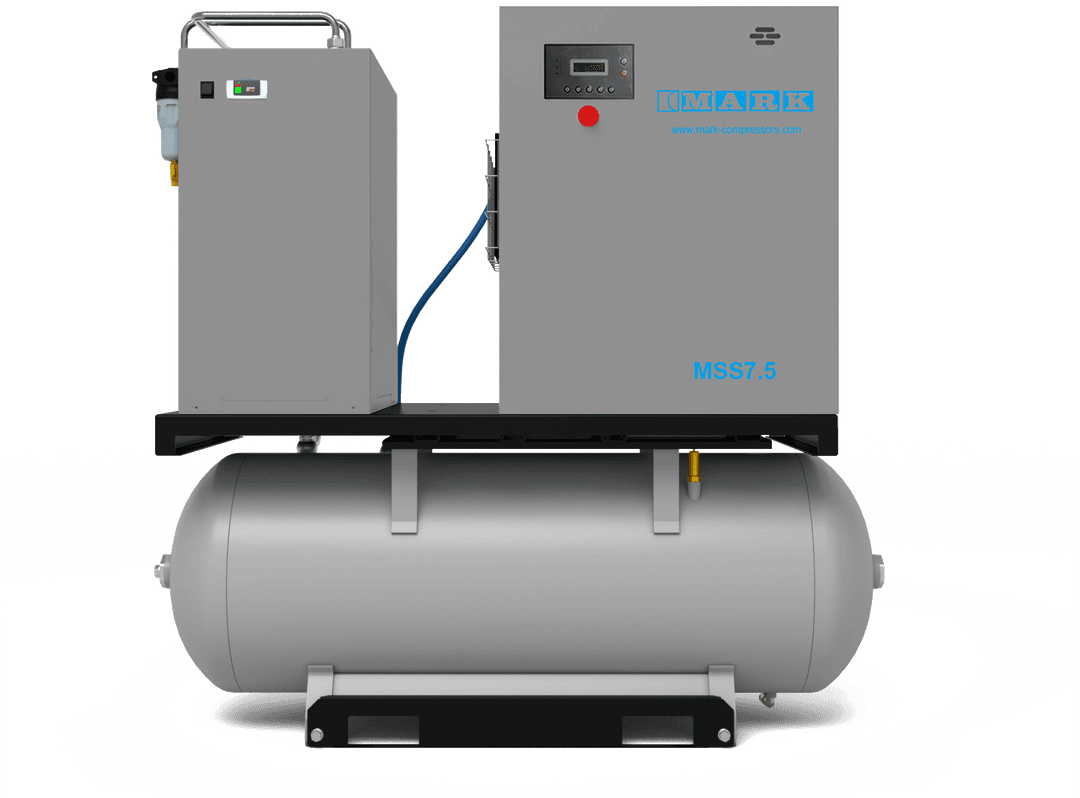

Available: Mark MSS PM · Atlas HS PMC
Two-Stage
Two compression stages lower the work per stage for higher efficiency on larger systems.
Available: Mark TMDD · Atlas HS BD
Low-Pressure
Lower-pressure screw air for textiles, conveying and processes that need volume more than bar.
Available: Atlas HS low-pressure
Series by brand
Two brands, grouped so you can compare like for like.
Compare the two brands side by side, then send your air demand for a sized quotation.
Sole distributor · Pakistan
Smart Energy Solutions
Atlas HS MS
fixed
Atlas HS fixed-speed screw air for value-focused factory installations.
Fixed-speedScrew air4-10 bar
View series
Atlas HS PMC
vsd
IE4 PM VSD platform for plants with shifting air demand.
VSDIE4 PMEnergy-first
View seriesAtlas HS BD
two stage
Two-stage Atlas HS range for higher-efficiency screw air.
Two-stageEfficiency4-10 bar
View seriesSpecifications
Mark MSS range — full lineup.
From the Mark leaflet. FAD quoted at 0.8 MPa / 8 bar, source ISO 1217.
| Model | Motor kW (HP) | FAD @ 8 bar (CFM) | FAD (m3/min) | Noise (dB(A)) | Weight (kg) | Outlet |
|---|---|---|---|---|---|---|
| MSS 4 | 4 (5.5) | 18 | 0.51 | 66 | 130 | 1/2" |
| MSS 5.5 | 5.5 (7.5) | 28 | 0.80 | 66 | 160 | 1/2" |
| MSS 7.5 | 7.5 (10) | 37 | 1.05 | 66 | 167 | 1/2" |
| MSS 11 | 11 (15) | 58 | 1.6 | 72 | 230 | 3/4" |
| MSS 15 | 15 (20) | 70 | 2.0 | 73 | 230 | 3/4" |
| MSS 18.5 | 18.5 (25) | 103 | 2.9 | 72 | 330 | 1" |
| MSS 22 | 22 (30) | 117 | 3.3 | 72 | 345 | 1" |
| MSS 30 | 30 (40) | 166 | 4.7 | 79 | 564 | 1 1/2" |
| MSS 37 | 37 (50) | 201 | 5.7 | 79 | 584 | 1 1/2" |
| MSS 45 | 45 (60) | 218 | 6.2 | 75 | 650 | 1 1/2" |
| MSS 55 | 55 (75) | 286 | 8.1 | 78 | 875 | 2" |
| MSS 75 | 75 (100) | 374 | 10.6 | 79 | 1107 | 2" |
Units also run at 7 and 10 bar.
How it works
Why screw beats piston for continuous duty.
Twin rotating screws
Two meshing helical rotors draw air in and squeeze it along their length for smooth flow with no pulsation.
Oil-injected sealing and cooling
Injected oil seals rotor clearances, removes heat and lubricates before separation downstream.
Built for 100% duty
A screw compressor is designed to run all day with steadier pressure, lower noise and longer life than piston machines.
Downstream air quality
A compressor needs clean, dry air downstream.
Treat condensate, oil carryover and particulates before they reach tools, valves or the final product.
- Dryers for +5 C or -40 C dew point targets.
- Filters for particulate, oil aerosol and vapour polishing.
- Receivers, auto drains and separators to stabilise the whole room.
Not sure which model? Tell us your air demand.
Share your flow, pressure and application. Sakura Trading will help shortlist the right compressor and air-treatment path.
